Up to
800 mm
Piston diameter
Why should ACONA manufacture your custom hydraulic cylinder?
-
Specialist for custom cylinders

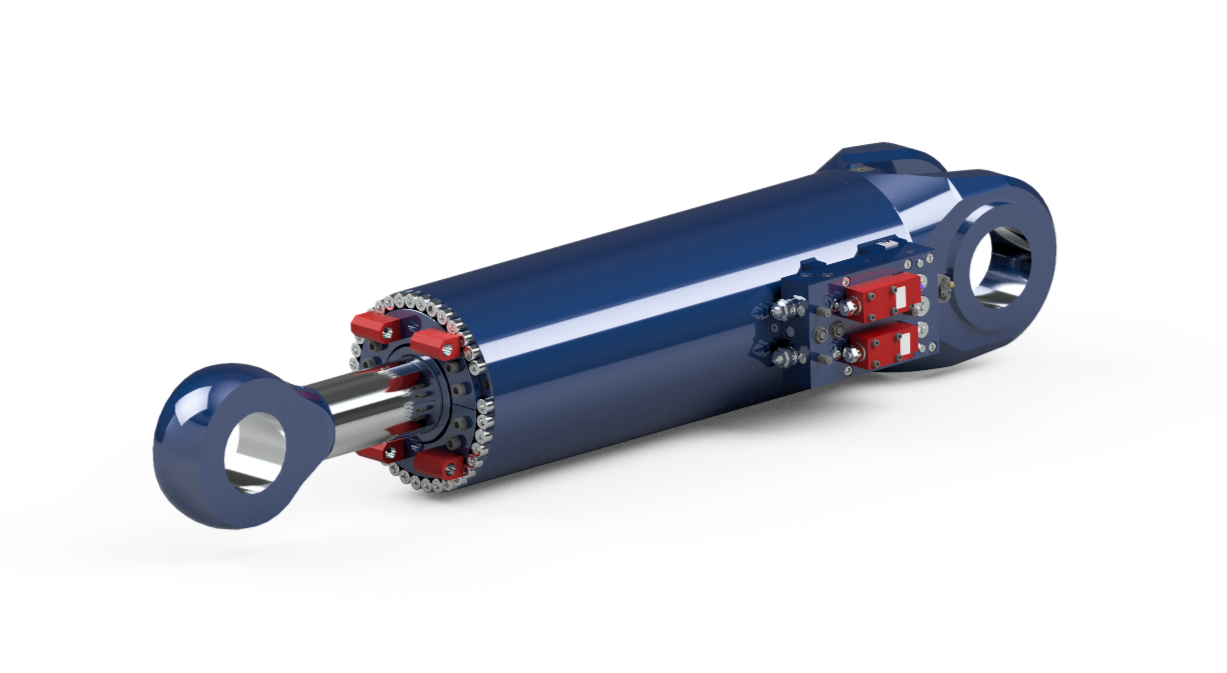

We develop and manufacture custom hydraulic cylinders precisely tailored to your technical requirements and operating conditions.
-
Engineering expertise
We support you already in the development phase with the design, engineering, and optimization of your cylinder solution. To ensure maximum accuracy, we use FEM analysis.
-
Fulltime project support
We support your project from technical consulting through design and manufacturing all the way to final delivery.
-
Flexible machinery fleet
Thanks to our versatile machinery fleet, we can respond flexibly to a wide range of requirements and production volumes.
-
Entwicklungspartner und nicht nur Hersteller
Together with you, we develop the right solution for your application—from the initial idea to the engineering design.
-
Short communication and production pathways
Thanks to short decision-making processes and in-house manufacturing, we can implement projects quickly and efficiently.
As specialists in custom hydraulic cylinders, we optimize existing designs and develop new solutions for your challenges.
That is why every custom hydraulic cylinder is individually tailored to your requirements—always reliable and manufactured to the highest quality standards.
Key data for special cylinder production
Up to
14 t
Cylinder weight
Up to
6.000 mm
Stroke
Your challenge is our starting point!
Whether extremely confined installation spaces, high dynamic loads, special media guidance, or complex sealing concepts — our cylinders are designed for maximum functionality under real operating conditions.
-
Dynamic load changes
-
Vibrations
-
Corrosive or abrasive media
-
Unsuitable temperatures
-
Narrow installation spaces
-
High amount of cycles
With our proprietary deep-R process, we not only optimize weld seams and material utilization, but also develop more compact, efficient, and robust cylinder solutions — precisely tailored to your process.
Which types of hydraulic cylinders can we offer to you?
Different applications require different types of hydraulic cylinders.
To ensure you are perfectly equipped for your needs, we offer, among others, the following hydraulic cylinder types:
-
Double-acting hydraulic cylinders
-
Single-acting hydraulic cylinders
-
Spring cylinder
-
Telescopic cylinder
-
Synchronised cylinder
-
Lifting cylinder
-
Lift cylinder
-
Press cylinder
-
Pressure cylinder
-
Differential cylinder
-
Rapid traverse cylinder
-
Spare cylinder
-
Replacement cylinder
Custom Engineering in detail: Technical and economic added value
Customised hydraulic cylinders often start out as virtual CAD models. FEM analysis and realistic simulations enable millimetre-precise designs that are perfectly suited to the installation space, medium and load profiles. Some typical advantages of special cylinders are:
-
Power reserves and lower weight
Optimised wall thicknesses and lightweight geometries enable higher material utilisation – more performance with the same component weight.
-
Longer service life
Modern surface hardening such as our deep-R process strengthens the weld seams, increases the cylinder service life by up to 100% and boosts cylinder performance by around 25%.
-
Individual material selection
Depending on the application scenario, high-quality materials are used – from high-strength steels and corrosion-resistant stainless steels to low-friction copper alloys that are precisely adapted to the respective operating conditions. This well-thought-out material selection for high-performance cylinders maximises service life and performance.
-
Cost-effectiveness
Custom engineering can pay off even with low quantities if unplanned downtime causes high follow-up costs. Longer service life and reduced maintenance significantly lower the total costs over the entire life cycle.
-
Everything from a single source
Suppliers such as ACONA, who combine design, calculation and manufacturing at a single location, minimise coordination efforts and can often deliver special cylinders several weeks faster than suppliers with multi-stage supply chains.
-
Standards upon request
Upon request, we design your hydraulic cylinder in accordance with relevant standards and provide the corresponding documentation and verification, for example according to DIN/EN standards, FKM guidelines, or DNV regulations.
When are custom cylinders the right choice?
Whenever space is limited, loads are high, or requirements are exceptional, a custom cylinder from ACONA is the right solution.
Our special cylinders are used, among other areas, in:
-
Mechanical engineering
-
Heavy Industry
-
Test bench technology
-
Steel, concrete, or offshore applications
-
Special plant construction
-
Retrofit projects
-
Press technology
-
Offshore Applications
Your hydraulic cylinder in 5 steps
At our company, the production of a hydraulic cylinder goes through five carefully managed steps to ensure the final product meets your exact requirements.
From the initial planning to final delivery, we pay attention to every detail to guarantee the highest quality and reliability.
Planning
The first step is a detailed consultation to clarify all key factors for your hydraulic cylinder.
These include the stroke length, required force, and piston diameter, as well as installation location, ambient temperature, and operating frequency.
If you already have specific engineering plans, we will implement them exactly to your specifications.
We are also pleased to assist in developing design plans.
Our experienced engineers use precise FEM analyses (Finite Element Method) to realistically simulate mechanical loads.
This approach enables detailed mapping of complex component geometries and accurate calculation of stresses, deformations, and loads under actual operating conditions.
Critical areas are identified early, precisely optimized, and both safety and service life of your cylinder are significantly increased.
Offer
Once all details have been clarified, we will provide you with a tailored proposal for your hydraulic cylinder. This offer takes into account not only the specific technical requirements but also your individual preferences regarding delivery time and budget. We provide transparent cost structures that make every step of the production process clear. Our aim is to offer you the best value for money while always ensuring the highest level of quality.
Construction
With the defined parameters, we begin designing your hydraulic cylinder, relying exclusively on proven methods and high-grade materials to guarantee the desired service life and maximum reliability.
Technical challenges are overcome by our experienced engineering team during the design phase.
Thanks to our proprietary deep-R process, we can increase the strength of weld seams and enhance the overall performance of the cylinder.
This enables us to design slimmer and more efficient hydraulic cylinders that withstand higher loads and are more environmentally friendly through significant material savings.
Quality control
After the hydraulic cylinder has been manufactured, it undergoes comprehensive quality control.
We test the functionality, load capacity, and durability of the cylinder to ensure our product meets your high expectations and operates reliably.
Delivery
Once all tests have been successfully completed and the hydraulic cylinder has met our stringent quality standards, it is securely packaged and delivered to you on schedule. We place great emphasis on careful logistics to ensure that the product arrives in perfect condition.
You will find our custom hydraulic cylinders in the following—and many other—applications:
ANCHOR LINK HERE: "Ansprechpartner"
Get in Touch with our Management
As a member of the management team, I am pleased to support you in developing customized solutions for demanding hydraulic cylinder applications.
Enquiry
Let's talk about your requirements.
We will inform you without obligation about how we can supply you with customised and innovative products for demanding projects with deep-R.
